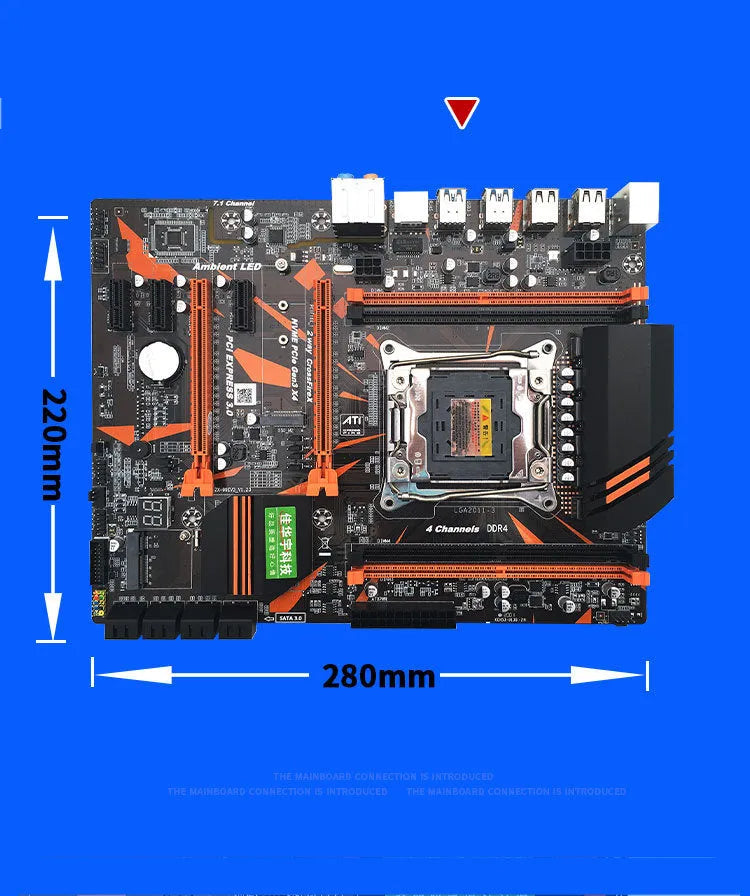

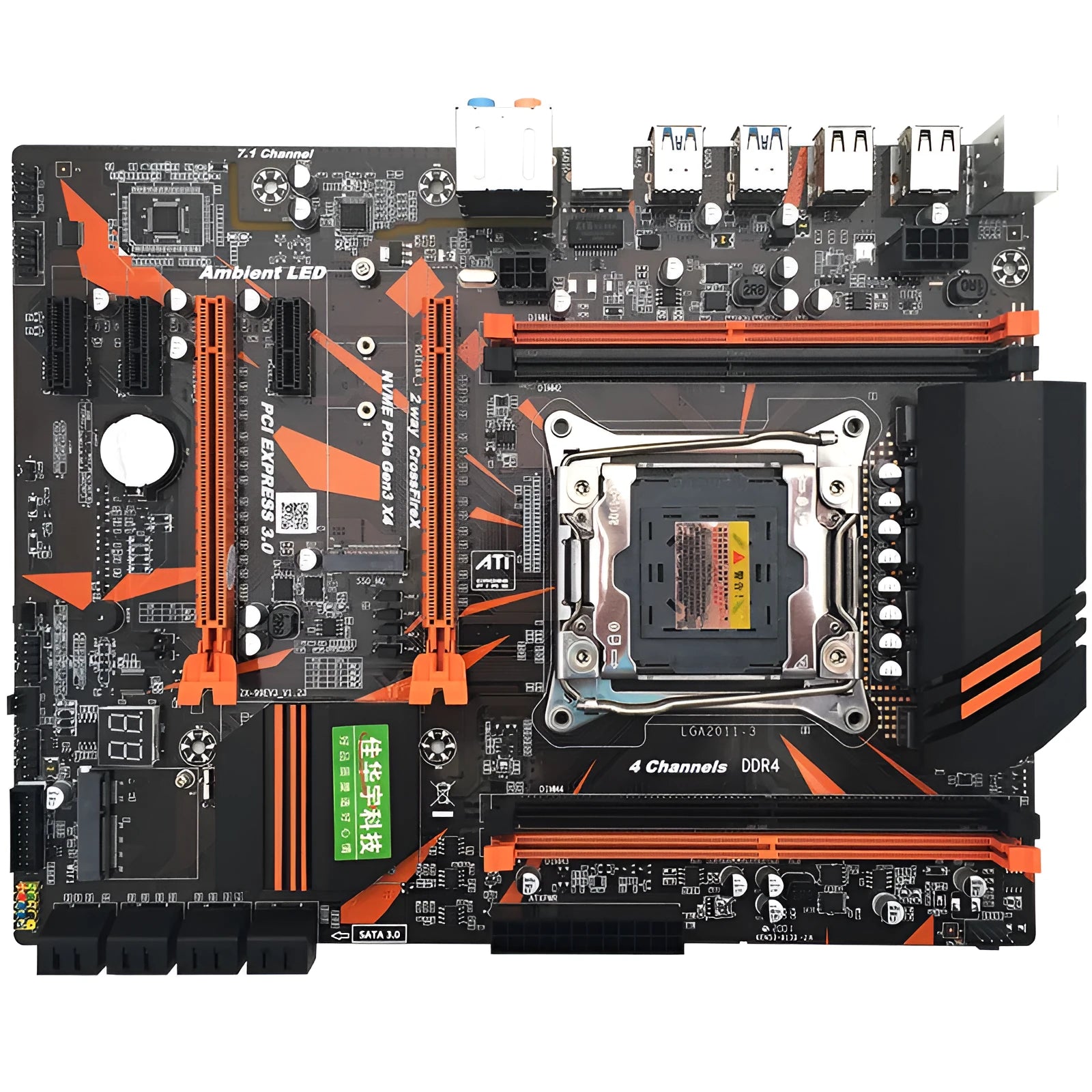

X99 ATX Motherboard for Intel LGA2011-3 Platform with Quad-Channel DDR4 Memory Support

This X99 chipset motherboard delivers a comprehensive platform for building high-performance computing systems around Intel's LGA2011-3 processor socket. Designed to accommodate both enthusiast-grade Core i7 processors and professional Xeon E5 server CPUs, it provides exceptional flexibility for workstation builds, content creation rigs, or gaming systems requiring substantial multi-threaded performance. The board's architecture supports four-channel DDR4 memory configurations with capacity extending to 128GB, while expansion capabilities include dual PCI-Express x16 slots for graphics solutions alongside multiple storage interfaces including modern M.2 NVMe. Integrated features eliminate the need for additional cards with 7.1 channel audio processing and gigabit Ethernet networking built directly onto the PCB, creating a balanced foundation for powerful system builds.

Processor and Memory Specifications

The motherboard's core compatibility centres on the LGA2011-3 socket, accommodating multiple processor families within Intel's portfolio. This includes enthusiast-focused Core i7 chips like the 5820K and 5960X from the Haswell-E and Broadwell-E series, alongside Xeon E5 server processors for professional applications requiring additional cores and memory bandwidth.

CPU Compatibility Details

Processor support extends to Intel's 2011-v3 socket chips including both the 58 and 68/69 series of Xeon E5 processors. A specific compatibility note indicates that when using Core i7 consumer processors, the system cannot simultaneously utilise ECC registered server memory modules – standard desktop DDR4 modules must be used instead. This distinction is important for builders selecting components, as mixing incompatible processor and memory types will prevent normal system operation.

Memory Configuration and Capacity

Four DDR4 DIMM slots arranged in quad-channel configuration support memory speeds up to 2400MHz or 2333MHz, with compatibility for both ECC registered server modules and standard desktop memory. Total system memory capacity reaches 128GB using 32GB modules in each slot, providing substantial working memory for demanding applications. The memory controller's flexibility allows builders to choose between error-correcting memory for critical workstation applications or standard modules for cost-effective enthusiast builds.

Expansion and Storage Connectivity

Expansion capabilities accommodate multiple add-in cards and storage devices through a combination of PCI-Express slots and storage interfaces. The board's layout provides balanced access to high-speed connections while maintaining compatibility with legacy peripherals through standardised connectors.

PCI-Express Slot Configuration

Two PCI-Express x16 slots support modern graphics cards in either single or multi-GPU configurations, with bandwidth suitable for gaming or GPU-accelerated computing workloads. Three additional PCI-Express x1 slots accommodate expansion cards like sound cards, network adapters, or specialty controllers. The physical construction includes reinforcement around slot connections to support heavier graphics cards securely.

Storage Interface Options

Eight SATA 3.0 ports provide connectivity for traditional hard drives and SATA solid-state drives, supporting RAID configurations for performance or redundancy. A dedicated M.2 PCIe NVMe interface offers direct PCI-Express connectivity for high-speed solid-state drives, bypassing SATA limitations for maximum storage performance. This combination ensures compatibility with both existing storage devices and modern NVMe solutions.

Connectivity and System Features

Integrated connectivity options and diagnostic features simplify system building while providing comprehensive monitoring capabilities. The board incorporates multiple interface standards alongside troubleshooting tools that assist with system assembly and problem diagnosis.

Rear Panel Connectivity

The rear I/O panel includes four USB 3.0 ports alongside two USB 2.0 ports for peripheral connectivity, complemented by a legacy PS/2 keyboard/mouse combo port for compatibility with older input devices. Network connectivity is provided through a single RJ45 gigabit Ethernet port driven by the integrated Realtek RTL8111H controller. Audio outputs configured for 7.1 channel surround sound accommodate multi-speaker setups without requiring additional sound cards.

Diagnostic and Power Delivery

A digital fault diagnosis display provides POST code readouts during system boot, assisting with troubleshooting when components fail to initialise properly. This is supplemented by an audible buzzer that provides basic beep code alerts. Power delivery utilises four distinct phases with both 24-pin ATX and 8-pin EPS connectors – the 8-pin connector may be partially populated with a 4-pin connector when limited power supply options are available, though full 8-pin connection is recommended for stable operation under heavy loads.
