1.3 Inch IPS LCD Display with 240x240 Resolution and ST7789 Control Chip

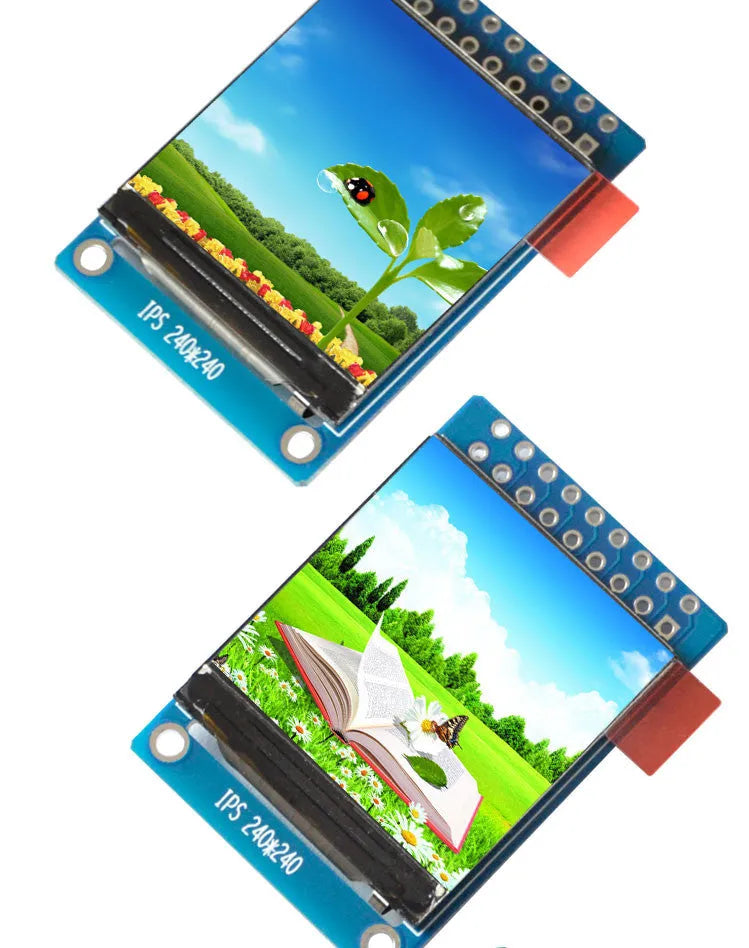

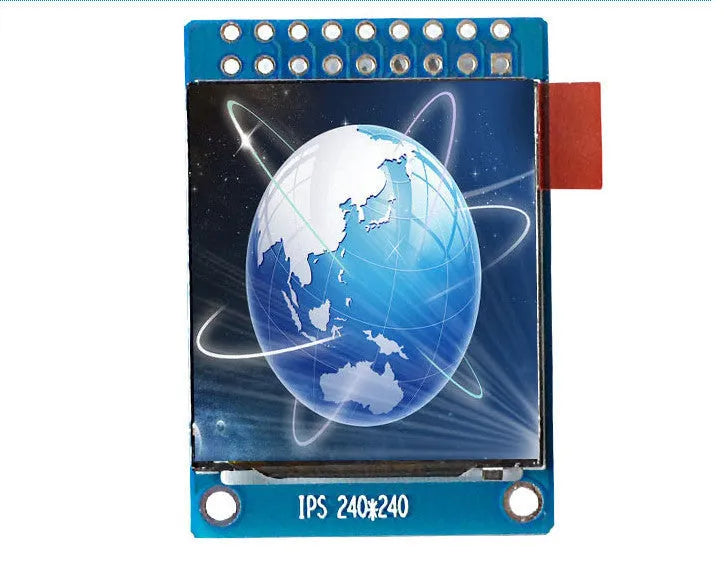

This 1.3 inch IPS LCD screen offers a compact yet capable display solution for electronic projects requiring colour visual output. With its 240 by 240 pixel square resolution and high-definition IPS technology, this screen provides more vivid colour reproduction compared to standard TFT LCD displays. The unit comes ready for integration with microcontroller systems, featuring both 8-bit parallel port and 4-wire SPI interface options to accommodate different project requirements. Measuring just 27.78 millimetres by 39.22 millimetres physically, this display packs a 23.4 by 23.4 millimetre active viewing area into a space-efficient package suitable for various electronic enclosures and prototypes.

Features and Construction

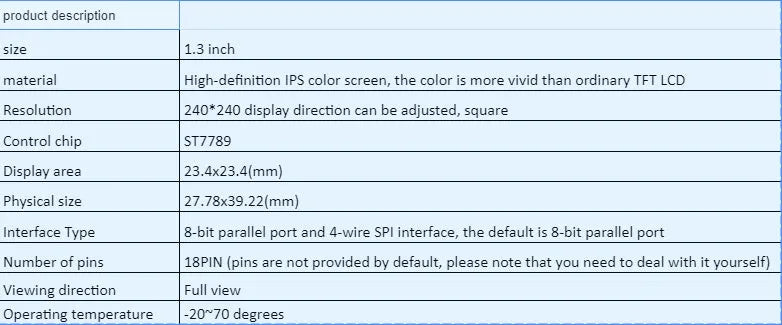

This display module combines precise engineering with practical connectivity options for maker projects and professional prototyping applications. The construction centres around the ST7789 control chip, which manages the screen's operation across a temperature range from -20 to 70 degrees Celsius. With its 18-pin connection interface, the display offers flexibility in system integration while maintaining a straightforward physical design that supports full viewing angle visibility from different positions.

Material and Build

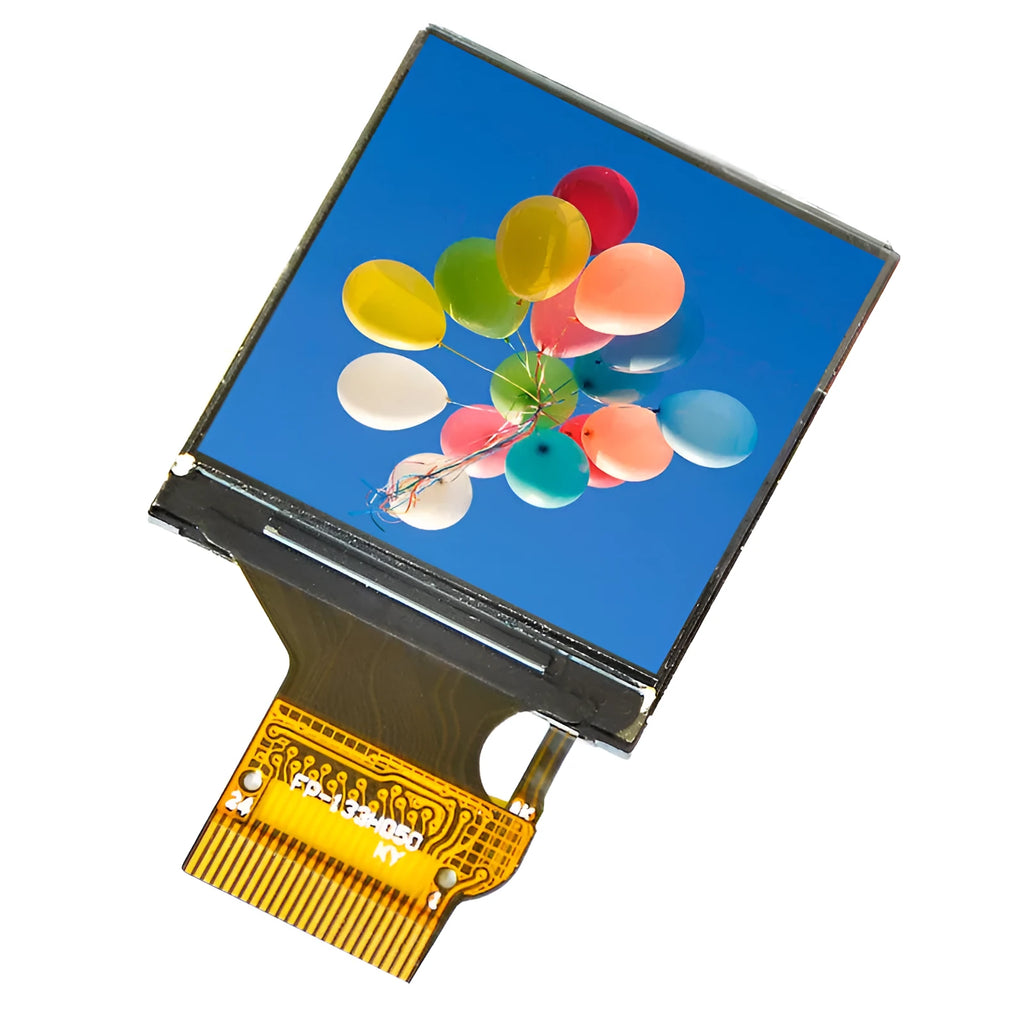

The core component of this display is its high-definition IPS colour screen, which delivers enhanced colour vibrancy compared to ordinary TFT LCD technology. This IPS construction provides the practical benefit of more vivid colour reproduction without requiring specialised lighting or viewing angles. The screen maintains consistent image quality across its full viewing angle, making it suitable for applications where the display might be viewed from different positions relative to the user or installation environment.

Size and Practical Fit

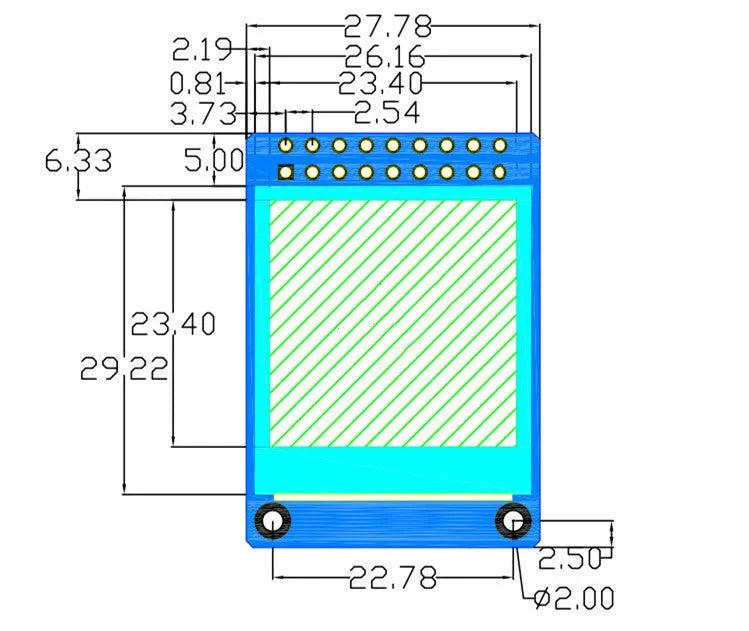

With physical dimensions measuring 27.78 millimetres wide by 39.22 millimetres tall, this display occupies minimal space within your project enclosure while providing a 23.4 by 23.4 millimetre active viewing area. The square 240x240 resolution creates balanced image proportions within this compact footprint, allowing for clear representation of icons, text, and graphical elements. The adjustable display direction feature adds installation flexibility, enabling you to orient the screen output to match your specific mounting requirements without compromising image quality.

Uses and Placement

This versatile display module finds application across both hobbyist and professional electronic contexts where visual feedback enhances system functionality. The combination of interface options and temperature tolerance makes it adaptable to various environments, from indoor prototyping stations to more demanding applications requiring operation across changing conditions. Its compact size allows integration into space-constrained designs without sacrificing display quality or capability.

Event or Professional Use

For professional applications, this display provides reliable performance within its specified temperature range while offering the interface flexibility needed for integration with different control systems. The 8-bit parallel port default configuration ensures straightforward connection with many microcontroller platforms, while the SPI option accommodates projects requiring serial communication protocols. These interface choices make the display suitable for custom instrumentation, control panels, and monitoring systems where precise colour representation enhances data interpretation.

Everyday Home Use

In hobbyist and maker projects, this screen brings full colour capability to custom clocks, weather stations, home automation interfaces, and gaming devices. The adjustable display direction allows creative mounting solutions, while the vivid IPS colours enhance visual appeal in finished projects. The 18-pin connection, though requiring user-supplied pins, follows a standard interface pattern familiar to electronics enthusiasts, supporting integration with common development boards and microcontroller platforms.

Benefits and Buying Value

This display module provides practical value through its combination of modern IPS technology, flexible connectivity, and compact physical design. Rather than offering extravagant features beyond its specification, it delivers reliable display functionality with clear parameters that help you determine its suitability for your specific project requirements. The inclusion of both parallel and SPI interfaces ensures compatibility with a range of existing systems without requiring additional interface conversion components.

Reuse and Low Maintenance

The display's durable construction and specified temperature range support reuse across multiple projects or long-term installation in finished applications. With no moving parts and solid-state design, the screen requires minimal maintenance beyond proper handling during installation. The ST7789 control chip's temperature tolerance from -20 to 70 degrees Celsius provides operational stability across typical indoor environments and many controlled outdoor applications.

Why Choose This Product

This display offers a balanced combination of modern IPS colour technology, practical connectivity options, and clearly documented specifications that help ensure project compatibility. The 240x240 square resolution provides adequate detail for most status display and interface applications, while the 1.3 inch size creates a visible yet space-efficient presentation area. By providing both interface options and adjustable display orientation, this module reduces the need for additional components or complex workarounds in your electronic designs.
