Parallel Charge Board for Simultaneous Charging of Up to Four 2-8S Lithium Battery Packs

This parallel charging board is designed as an expansion adapter to streamline the process of charging multiple lithium battery packs, commonly used with radio-controlled vehicles, drones, and other hobbyist electronics. It allows you to connect and balance charge up to four separate battery packs at the same time, provided they are of the same type and have an identical cell count (from 2S to 8S). By charging in parallel, you eliminate the need to manually swap out batteries on your charger, saving considerable time and effort during charging sessions. This is particularly useful for users who operate multiple models or need quick turnaround between uses.

Features and Construction

The board is built with practical performance and user safety as primary considerations. Its construction focuses on handling the increased electrical load of parallel charging efficiently and reliably.

Material and Build

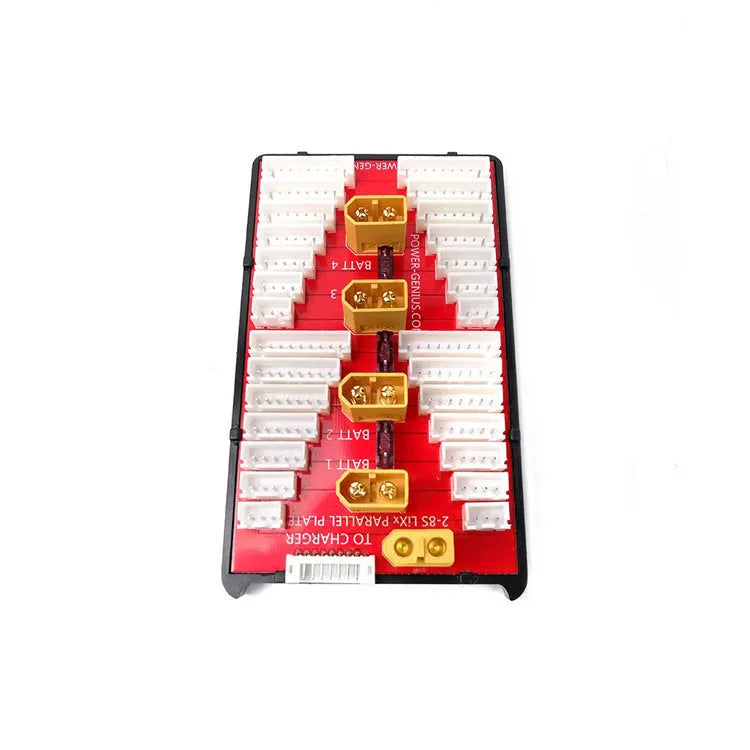

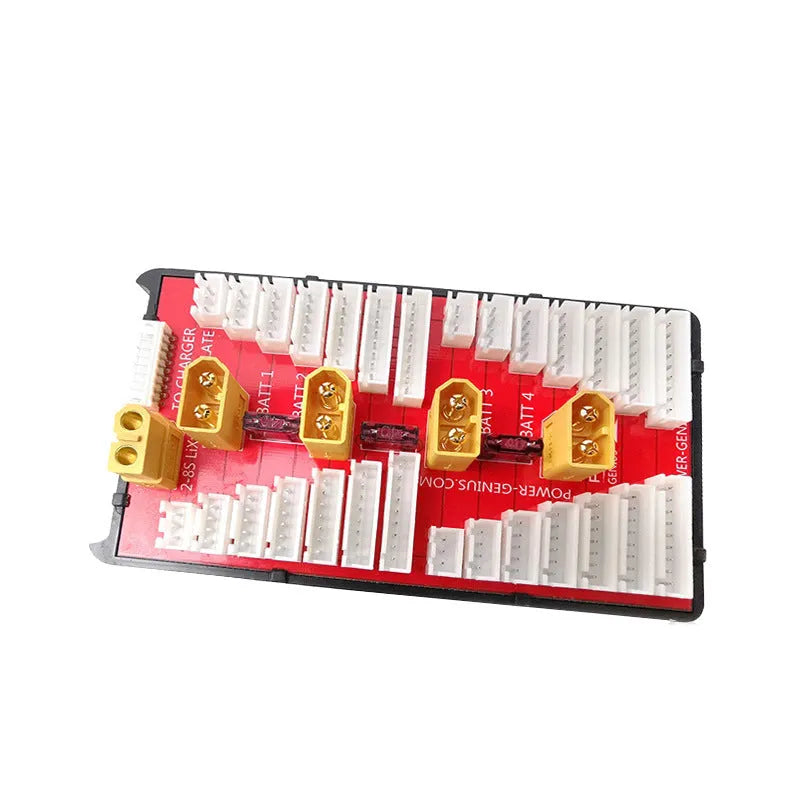

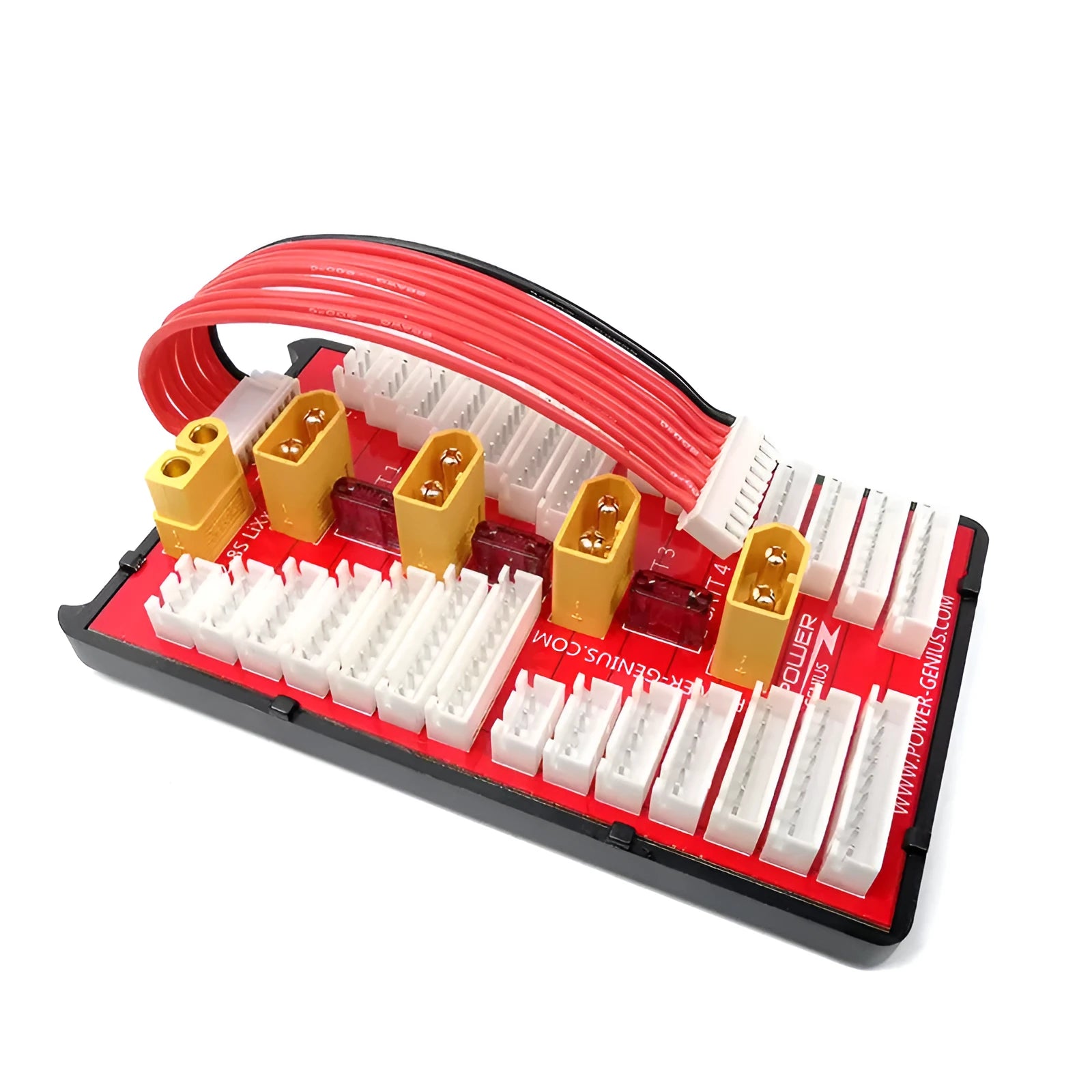

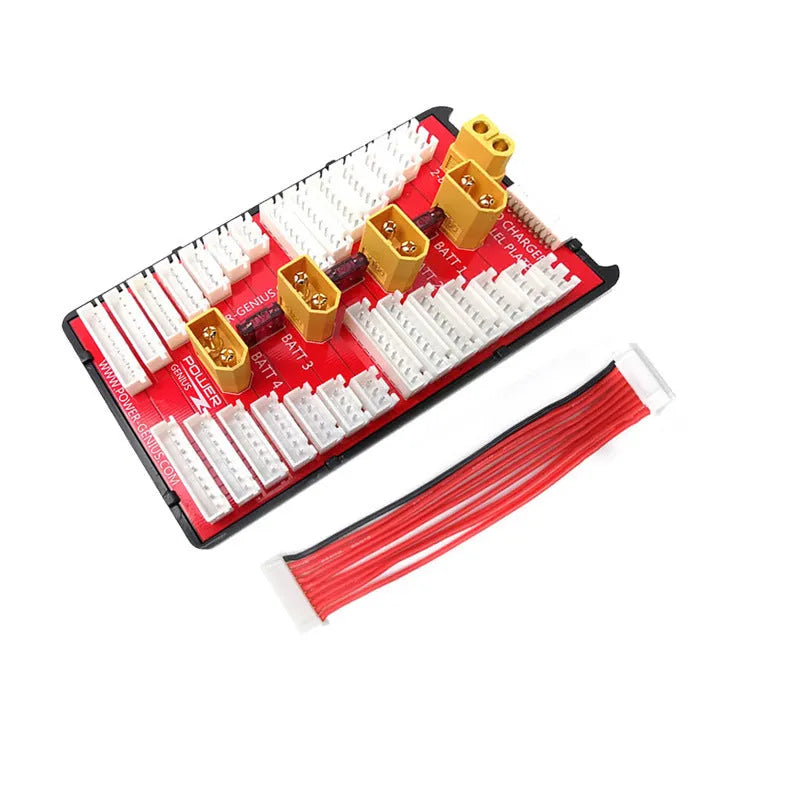

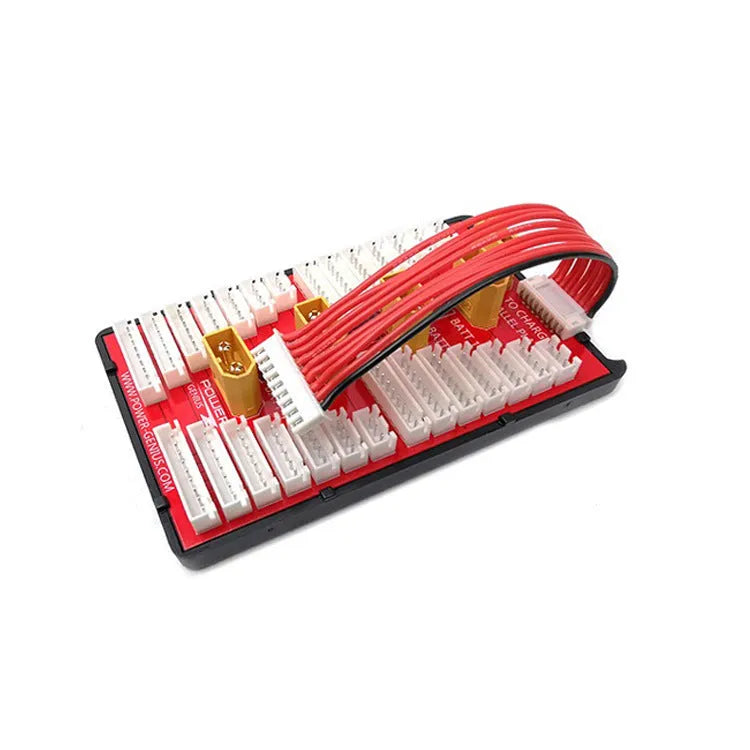

The core of the board is a printed circuit board (PCB) that uses thicker copper foil. This specific construction detail is important as it enables the board to support a higher continuous charging current, rated for up to 35 amps. The electrical connections are made via high-quality gold-plated connectors, which are chosen for their reliable conductivity and resistance to corrosion over time. For the balance port connections, the board employs a flexible and durable 18AWG multi-strand silicone wire.

Size and Practical Fit

While exact physical dimensions are not provided, the board is designed as a functional adapter. Its layout accommodates connections for four separate battery packs, each requiring a main discharge plug (like a T plug) and a balance connector. The design prioritises a clear and organised connection point to help users manage multiple cables safely and effectively during the charging process.

Uses and Placement

This adapter board is tailored for specific charging scenarios where efficiency and battery management are key. It transforms a standard single-output balance charger into a multi-pack charging station.

Event or Professional Use

For competitive RC racing, drone flying, or any scenario where multiple battery packs are cycled through quickly, this board is highly valuable. It allows pilots or drivers to have all their depleted packs charging simultaneously between heats or flights. This can effectively keep a fleet of models operational with minimal downtime, as the board handles the parallel balancing, which can shorten the overall balance phase of the charge cycle compared to sequential charging.

Everyday Home Use

For the enthusiast who uses several battery packs across a weekend, this board simplifies the charging routine. Instead of monitoring and swapping packs on the charger every hour or two, you can set up a single, longer charging session for all packs at once. It is also beneficial for charging older packs with lower individual charge rates (C-rates); when connected in parallel, the aggregate capacity allows for a safer, effective charge current.

Benefits and Buying Value

The primary value of this parallel charging board lies in its ability to save time and add a layer of organised convenience to the battery maintenance process.

Reuse and Low Maintenance

The board itself is a durable tool designed for repeated use. Its incorporated safety fuses and robust connectors are intended to provide long-term service with minimal maintenance. The included silicone caps for the T plugs help keep the connectors clean and prevent accidental short circuits when not in use, contributing to the product's longevity and safe operation over time.

Why Choose This Product

This board offers a straightforward solution to a common logistical problem in hobbies that use multiple lithium polymer batteries. Its key advantages are the concrete time savings from charging four packs at once and the integrated safety features, like the 40A fuses, which provide protection against potential issues arising from connecting packs with slight voltage variances. It provides a practical upgrade to a standard charging setup without requiring a more expensive, multi-port professional charger.
