Music Tesla Coil Driver Board for 20cm Arcs with Direct 220V Power and SSTC Safety

This Tesla coil driver board is engineered for creating controlled, high-voltage electrical arc displays that can be synchronised to audio. It provides a practical solution for educational demonstrations, science exhibits, or visual effects by operating directly from a standard 220V AC mains socket, removing the complexity of installing a dedicated ground wire or managing multiple power supplies. The unit incorporates a Solid State Tesla Coil (SSTC) design with an arc extinguishing isolation device, prioritising operational safety alongside its striking visual output of arcs exceeding 20 centimetres.

Technical Specifications and Build

The driver board is built to precise electrical and physical specifications, offering a balance of performance and portability for various settings.

Power and Electrical Parameters

With a product capacity of 200VA and an average power rating of 250W, the board handles the demands of sustained arc generation. It accepts a wide AC input voltage range from 110V to 240V, making it versatile for different regional standards, though it is supplied configured for 220V operation. The working current varies between 0.1A and 2.0A depending on the arc intensity and audio modulation. This direct power supply capability is a key functional differentiator, simplifying setup significantly.

Physical Dimensions and Portability

The main driver unit is compact, measuring 100 millimetres in width, 115 millimetres in depth, and 205 millimetres in height. Weighing exactly 1 kilogram, its small size and robust structure contribute to its ease of transport and setup for temporary installations or mobile demonstrations, without compromising on the structural integrity needed for high-voltage operation.

Operation and Functional Use

Designed for user accessibility, the system integrates several features that streamline the process of generating and controlling musical lightning displays.

Audio Synchronisation and Control

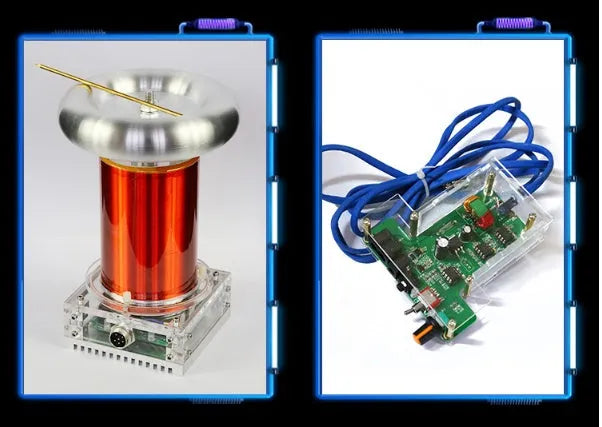

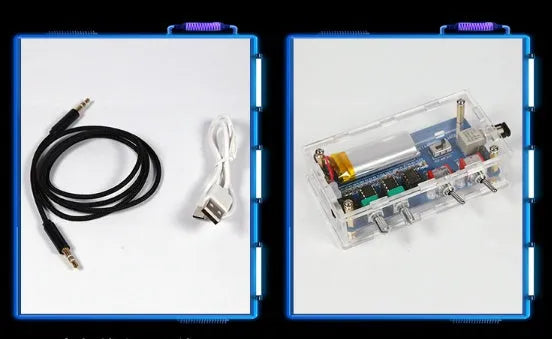

A central feature is the 3.5mm audio input port. By connecting an audio source, the frequency and intensity of the generated electrical arcs can be modulated in time with music or sound, creating a direct visual representation of the audio signal. Control is managed via a separate controller unit, which houses the potentiometer for adjusting arc brightness and initiating the discharge.

Arc Generation and Safety Systems

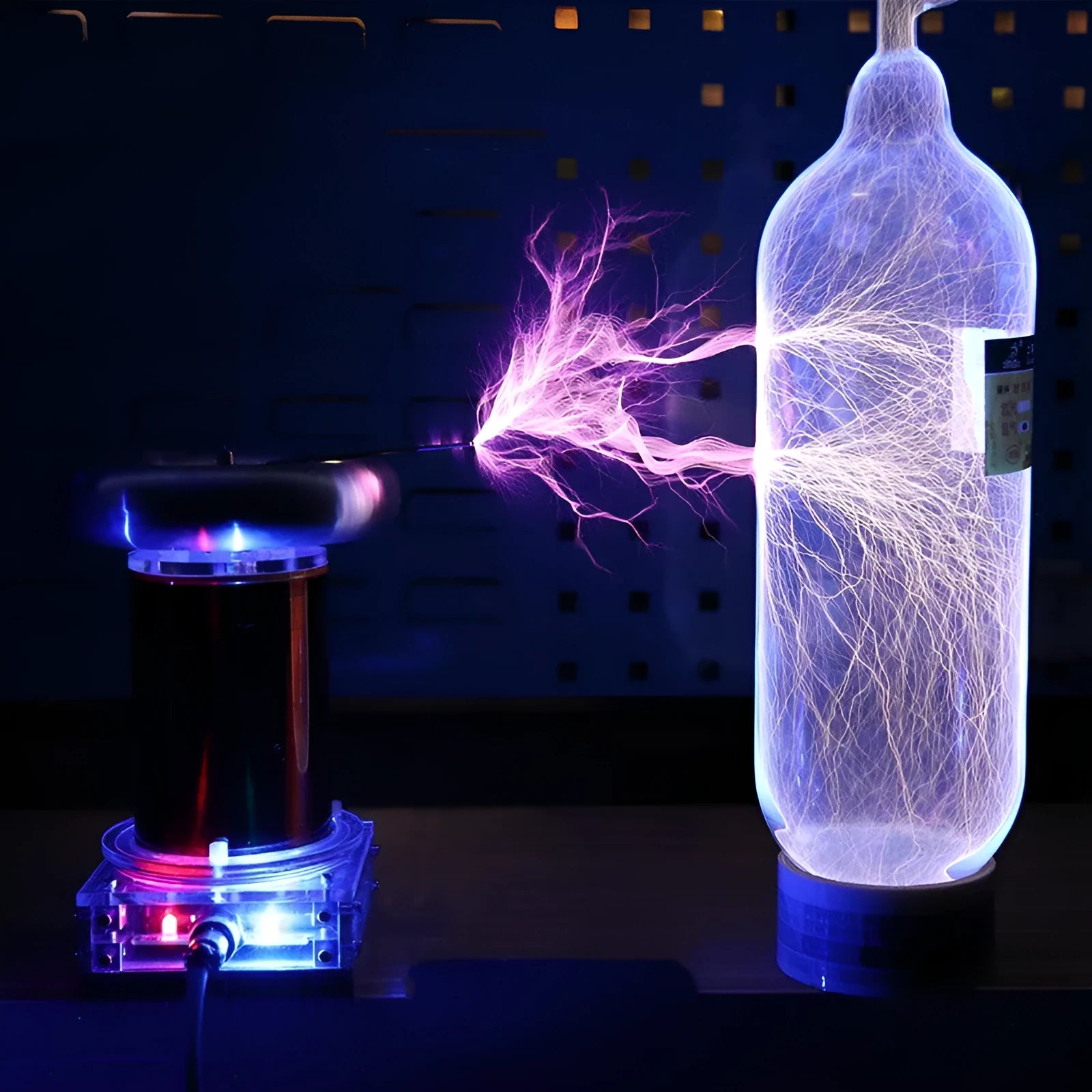

The system is capable of producing a corona discharge or spark gap with an adjustable arc length, reaching over 20cm. A critical technical point is the integrated arc extinguishing isolation device, which helps manage the high-voltage discharge safely. Furthermore, the design allows the coil to operate effectively without a physical earth ground wire, a feature that reduces installation barriers in many environments.

Setup Guidance and Safety Protocols

Correct setup and adherence to safety guidelines are essential for reliable and risk-free operation of this high-voltage equipment.

Initial Assembly and Connections

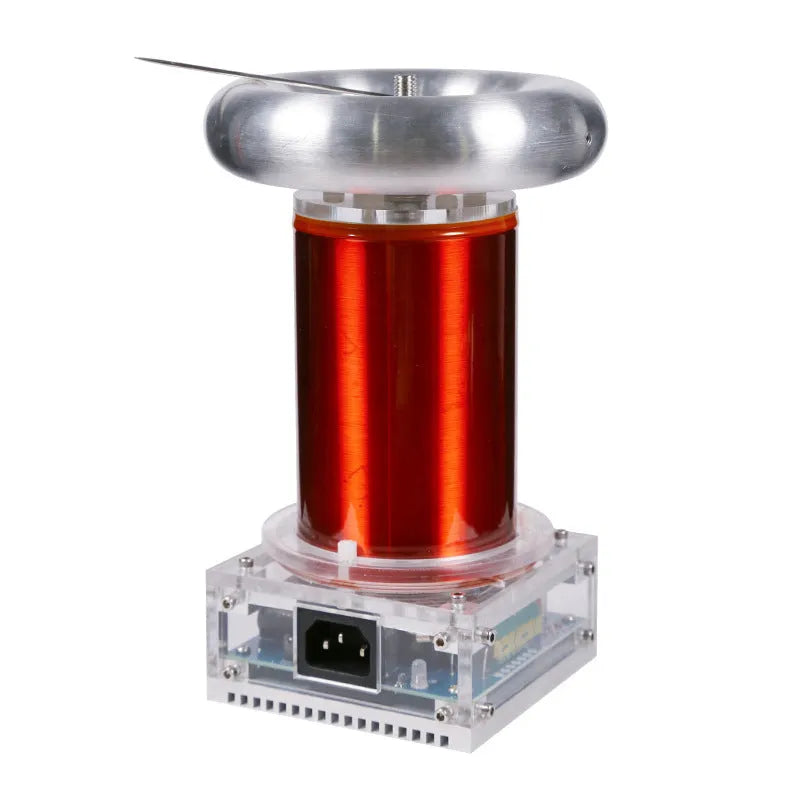

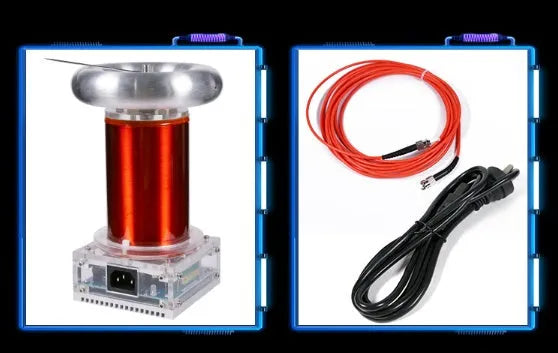

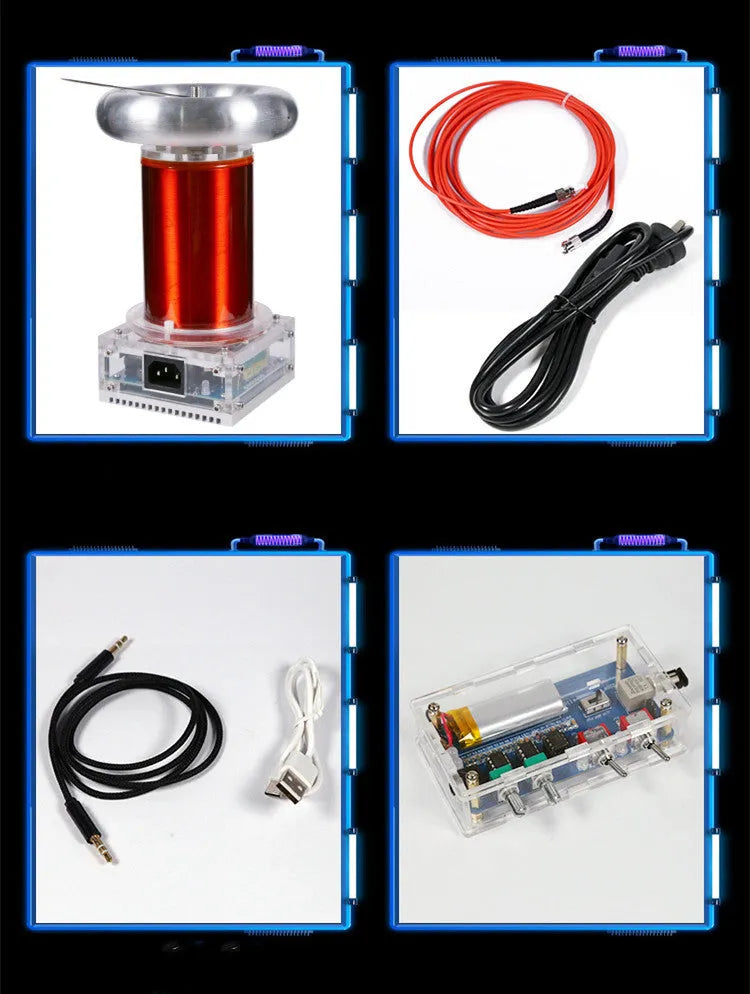

For a new SSTC unit, initial setup requires placing the provided metal thimble onto the pressure equalisation ring at the top of the coil, with the tip extending approximately 2-3cm for optimal arc formation. Connections must be made carefully: the fibre optic cable between the product body and controller has a raised bump on the connector and should be rotated into place, not forced. The 220V power cable and 3.5mm audio cable complete the primary connections.

Critical Safety Instructions

Safety is paramount. Users must never touch the coil or voltage equalisation ring while the product is energised. A minimum safety distance of 0.5 metres must be maintained from the operating unit at all times, with a distance of 1 metre being the recommended practice for observers. It is crucial that the potentiometer on the controller is always returned to the '0' position before switching the unit on or off. Furthermore, to maintain component health, it is advised to limit continuous operation to 3-5 minute intervals, with music playback kept to 2-3 minute sessions.
